Wire Diameter 0.8-1.6mm Roll GI Wire Net Making Machine
1. Product description

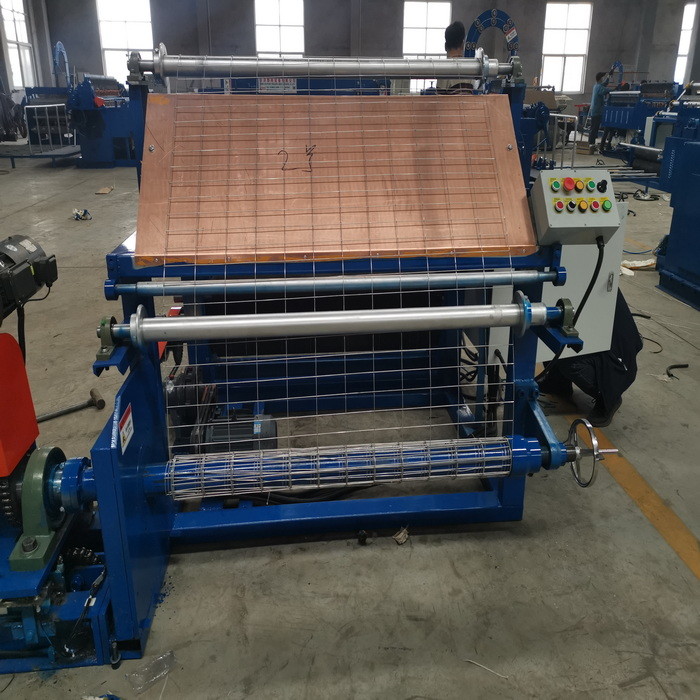

Wire diameter 0.8-1.6mm roll GI wire net making machine is used for making wire mesh. The wire diameter 0.8-1.6mm roll GI wire net making machine for construction is new designed and suitable for bigger range of diameter and different mesh hole size. The mesh pulling system is different from the traditional mesh pulling system by using rubber shaft pulling. The mesh aperture can be any size among 12.7-100mm.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 2m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The wire diameter 0.8-1.6mm roll GI wire net making machine can be widely used as external wall insulation wire mesh, galvanized wire mesh, galvanized welded wire mesh , construction mesh, external wall insulation mesh, decorative mesh, anti- Split net. It is made of high-quality stainless steel wire, which is more resistant to acid, alkali, welding, beauty and versatility.
4. Advantages
a. The welding transformer have 8 degrees and can be adjusted for different wire diameters.
b. Our machine can automatically dischare wire mesh.
c. The main frame is made of thick steel plate and structural steel, which is more reliable and fastness.
d. Electrical element brand: Schneider
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most
suitable machine.
