Automatic Six Feet Width Welded Wire Mesh Machine
1. Product description
Automatic six feet width welded wire mesh machine is used for making wire mesh. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor. At the same time, the machine is also equipped with automatic cutting mesh machine, when the machine finishes the mesh length according to the setting parameters, the mesh will be cut by the cutting mesh machine automatically.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6feet | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic six feet width welded wire mesh machine can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant. Welding spot is sturdy. The machinery property is stable, anti-corrosion perfomance is good.
4. Advantages
a. Electrode lift system to extend electrode life.
b.Line wire loop and balance system to ensure wire mesh accuracy.
c. The mesh width is equal to the length of weft wire.

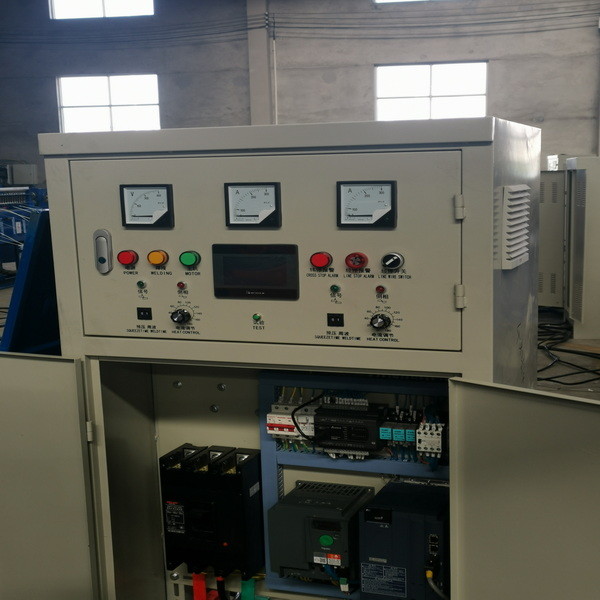

d. The electric current, line and weft opening are adjustable.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
