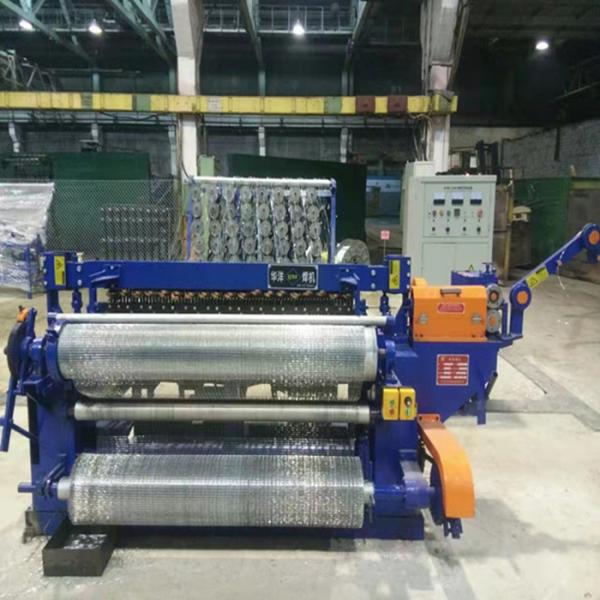

Touch Screen Diameter 0.45-0.85mm Wire Mesh Welder

Name: Touch Screen Diameter 045085mm Wire Mesh Welder
Brand: Huayang
Price: 1 USD

Brand Name : Huayang

Model Number : R-DHW

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.

Product name : Diameter 0.45-0.85mm Wire Mesh Welding Machine

Warranty : 1 year

Final product : Roll mesh

Usage : Produce Wire Mesh

Electrodes : Single or double row

Key Selling Points : Long Service Life, Easy to Operate

Welding Speed : 90-100times/min

Voltage : 220V/380V/415V/440V

Color : Blue, green, orange or per request

Minimum mesh size : 12.7mm

Contact Now

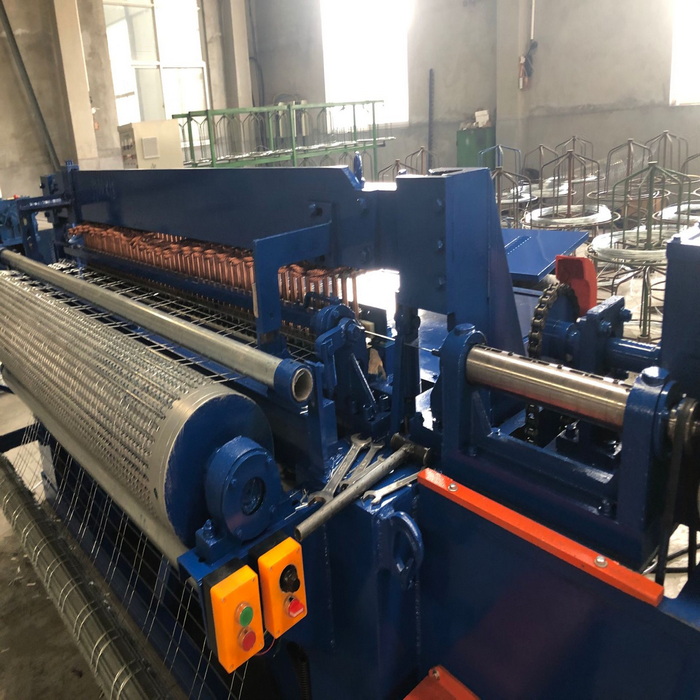

Diameter 0.45-0.85mm Wire Mesh Welding Machine

1. Product description

Diameter 0.45-0.85mm Wire Mesh Welding Machine is used for making wire mesh. This is automatic wire mesh welding machine line for the changeable diameter. PLC controlled system and touch screen make the machine line easy to operation. All the components used are with famous brand both aboard and at home. They guarantee the machine line has perfect performance and high quality as wall as long living life.

2. Technical parameter

Model	Mesh width	Minimum mesh size (inch)	Wire diameter(mm)	Welding speed (rows/min)	Roll mesh length (m)	Other available mesh size (inch)
R- DHW	1-2.5m	1/2x1/2	0.6-1.3	90-120	110	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	1-2.5m	1/2x1/2	0.8-1.6	80-90	100	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	1-2.5m	1x1	0.6-1.3	90-110	110	1x2, 2x1, 2x2, 2x4
R- DHW	1-2.5m	1x1	0.8-1.6	90-110	100	1x2, 2x1, 2x2, 2x4
R- DHW	1-2.5m	1x1	1.4-2.6	80-90	80	1x2, 2x1, 2x2, 2x4

3. Application area

Diameter 0.45-0.85mm Wire Mesh Welding Machine is controlled by PLC system. It can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries.

4. Advantages

a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.

b.Server motor solves the problem of one net plate with different mesh size, and the system adopts PLC control.

c. Line wire loop and balance system to ensure wire mesh accuracy.
